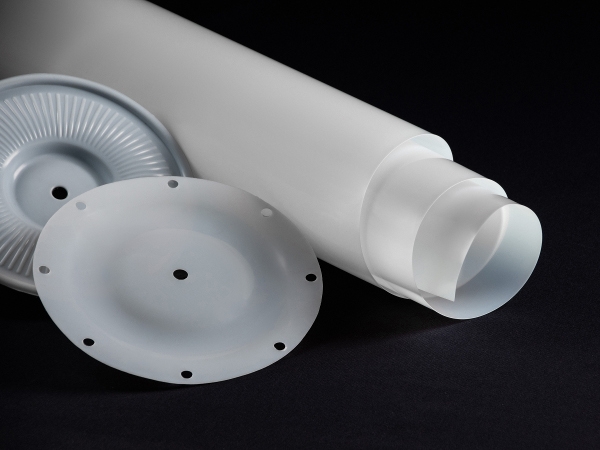

SEALON Diasheet is a revolutionary PTFE material for diaphragms and made of 100% PTFE. It is the most chemically resistant. The materials vary with respect to heat-resistance, chemical-resistance, and durability.

Features :

• 100% Pure PTFE
• Highly compressible
• Uniform and highly fibrillated microstructure in multidirection
• Unaffected by common chemicals, pH range 0-14
• Non-contaminating, non-toxic.
• Using temperature from-450°F to +500 °F for short time up to +600 °F

Applications : Can be used in virtually many types of sealing applications throughout industry including:

• Chemical manufacturing
• Food equipment manufacturing
• Pulp and paper processing
• Power generation

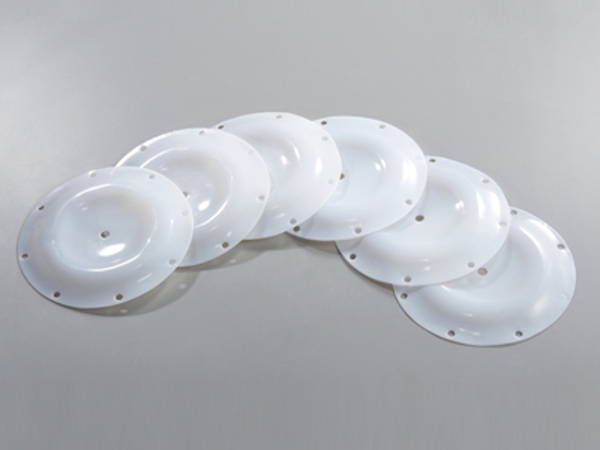

• Diaphragm pumps

Remarks :
Compatible fluids: Corrosive fluid, acid, alkali, solvent, waste liquid and oils.
Non-compatible fluids: Melted alkali metal, fluorine at liquid and gas states.

Available Sizes :

SIZE	THICKNESS
Metric size: 1000mmX1000mm English size: 40”X40”	0.5mm 0.8mm 1.0mm

Certificate/Test Report :

• BAM: Gasket Material for Reactivity with Oxygen
• TA Luft Certificate: SEALON 1.0mm
